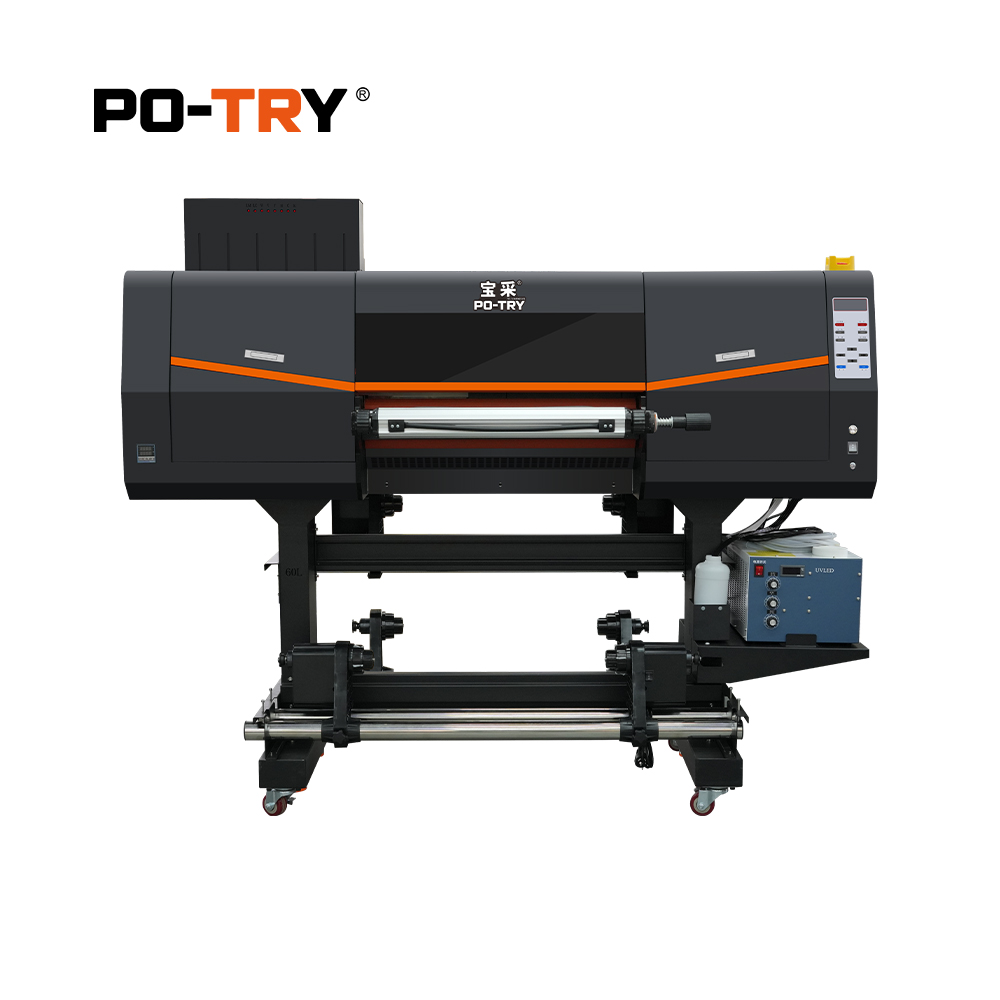

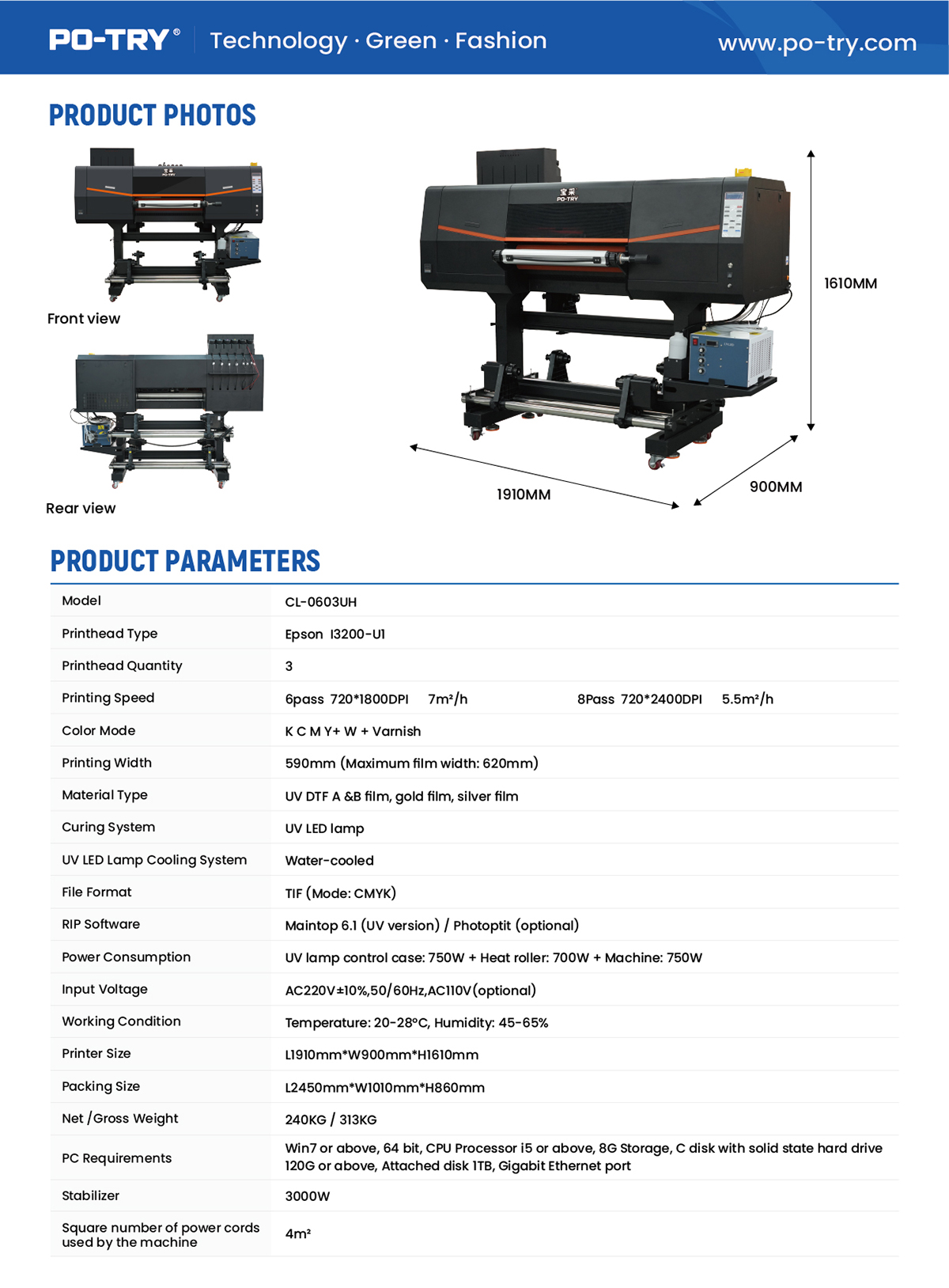

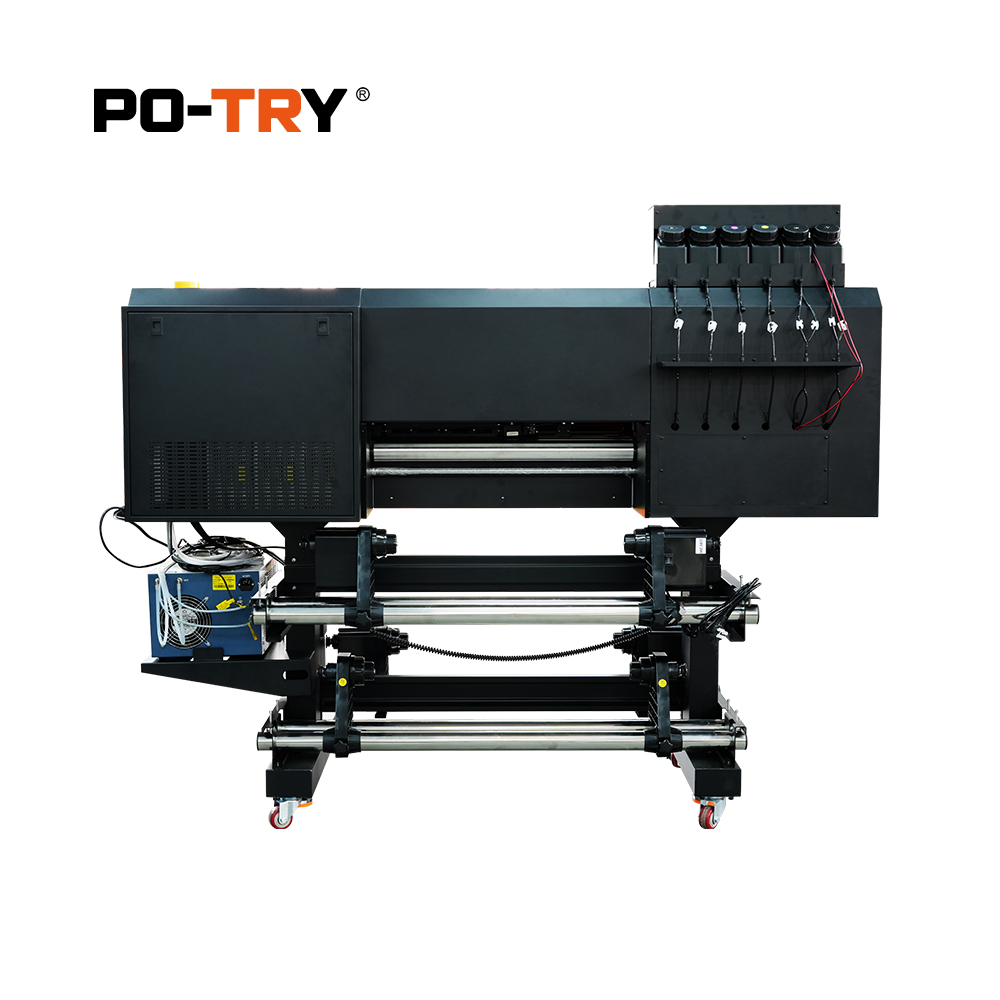

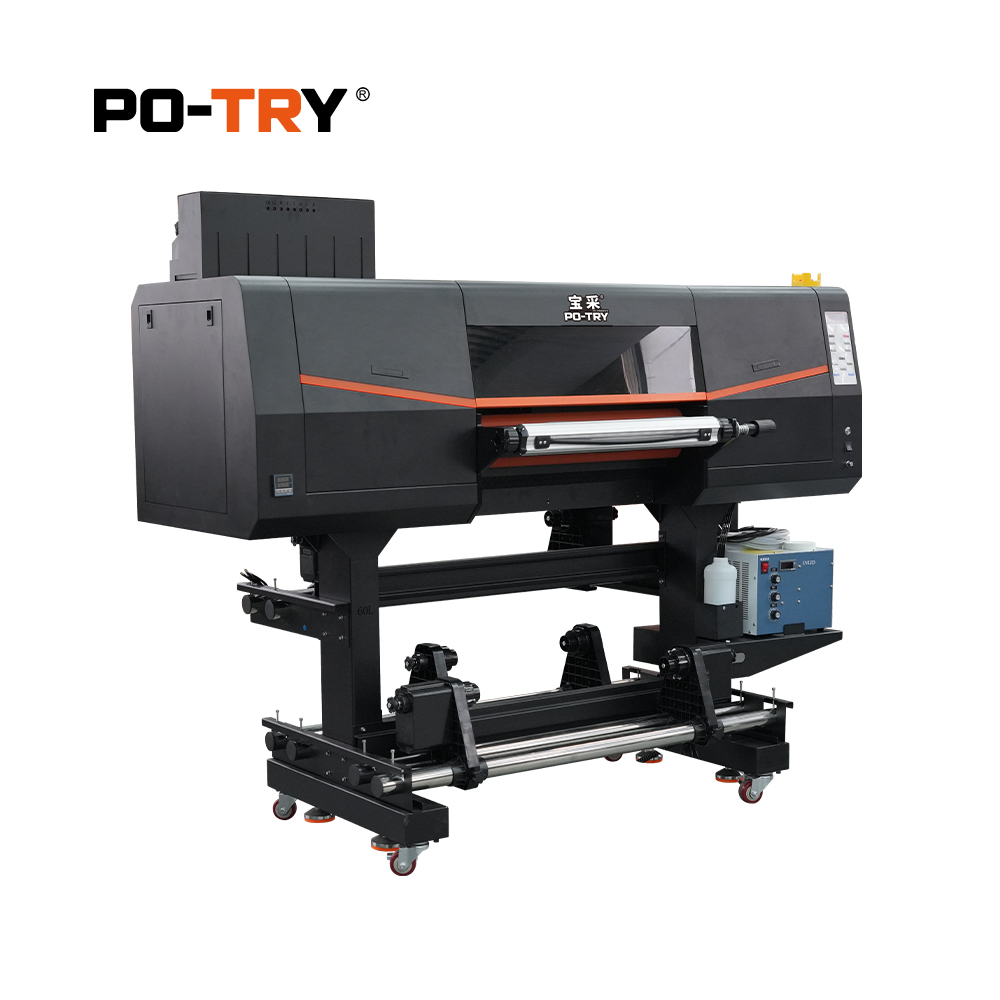

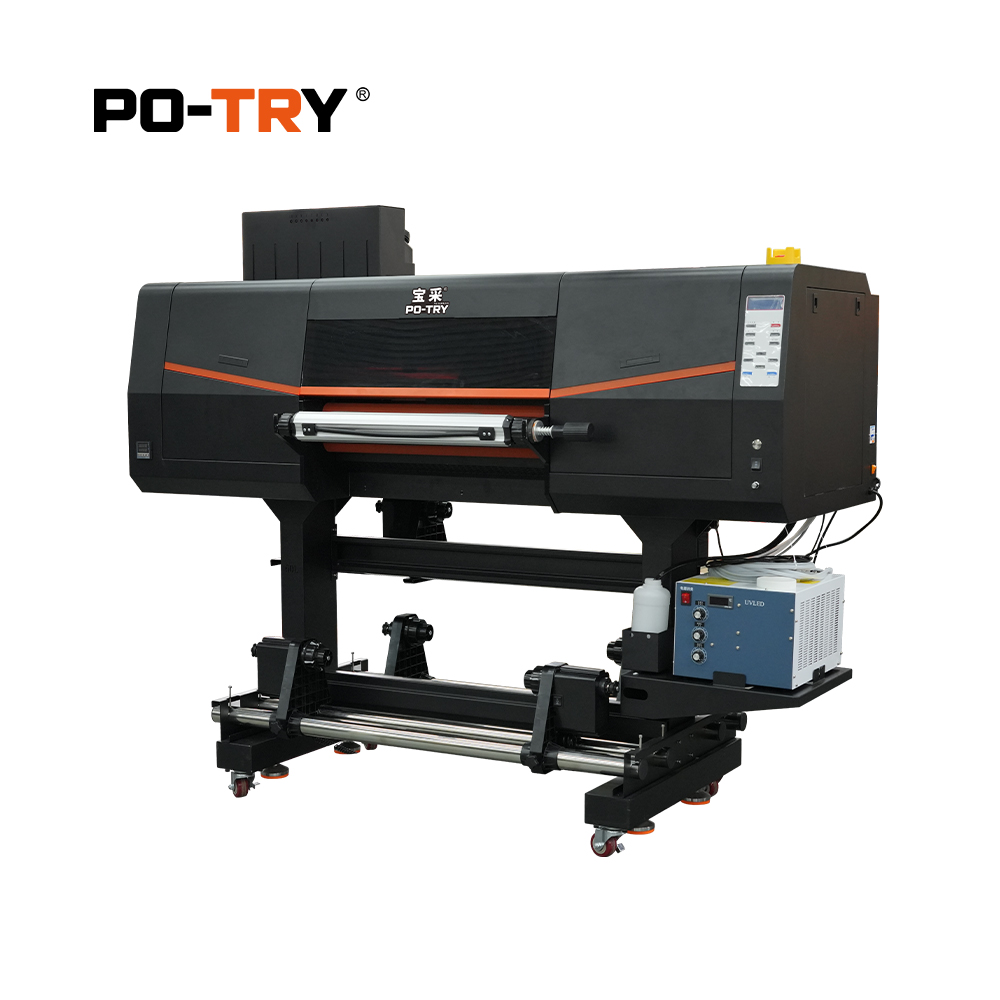

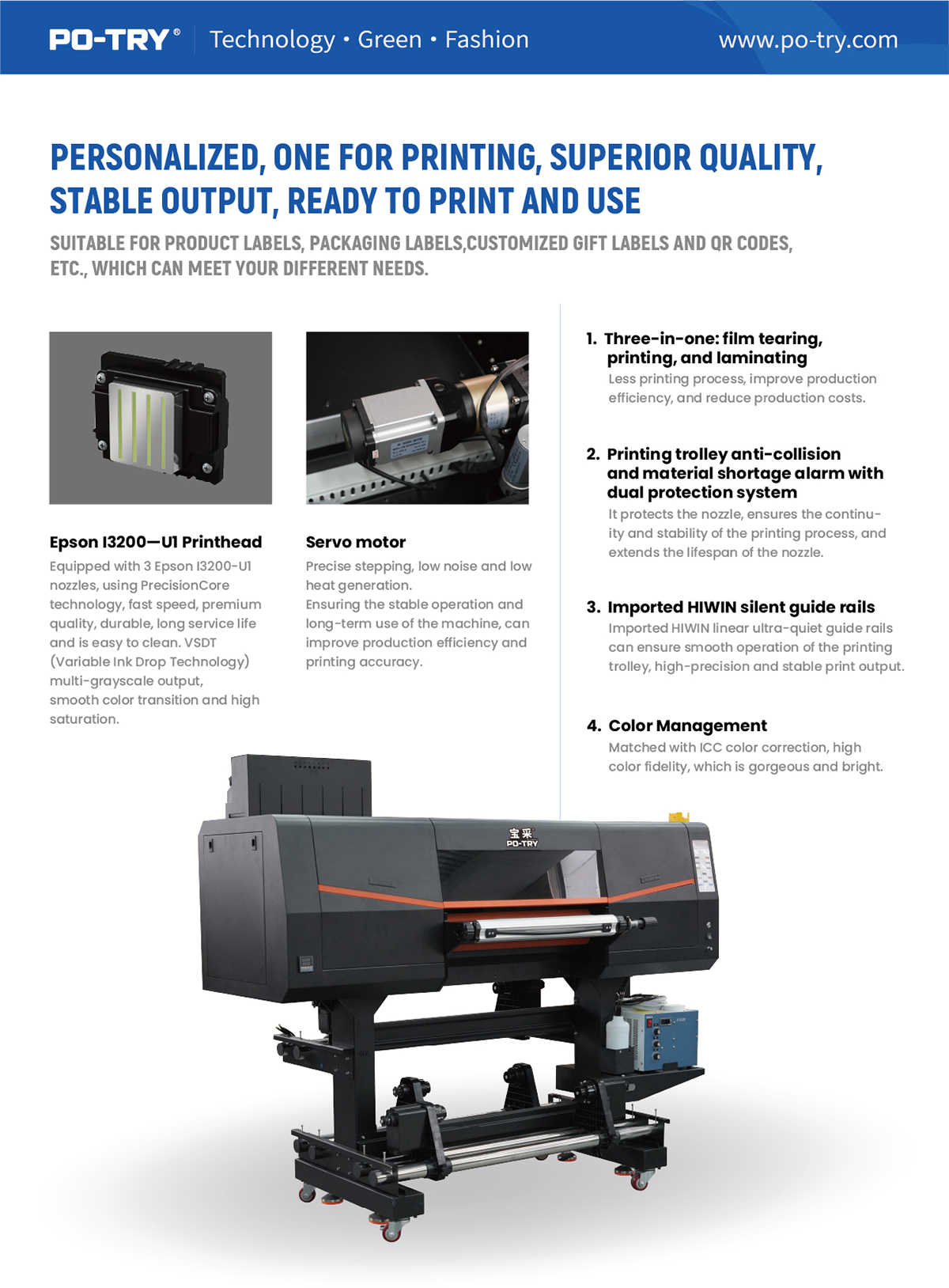

| Model | CL-0603UH |
| Printhead Type | Epson I3200-U1 |
| Printhead Quantity | 3 |
| Printing Speed | 6pass 720*1800DPI 7m2/h 8Pass 720*2400DPI 55m2/h |
| Color Mode | K CM Y+ W +Varnish |
| Printing Width | 590mm(Maximum film width:620mm) |

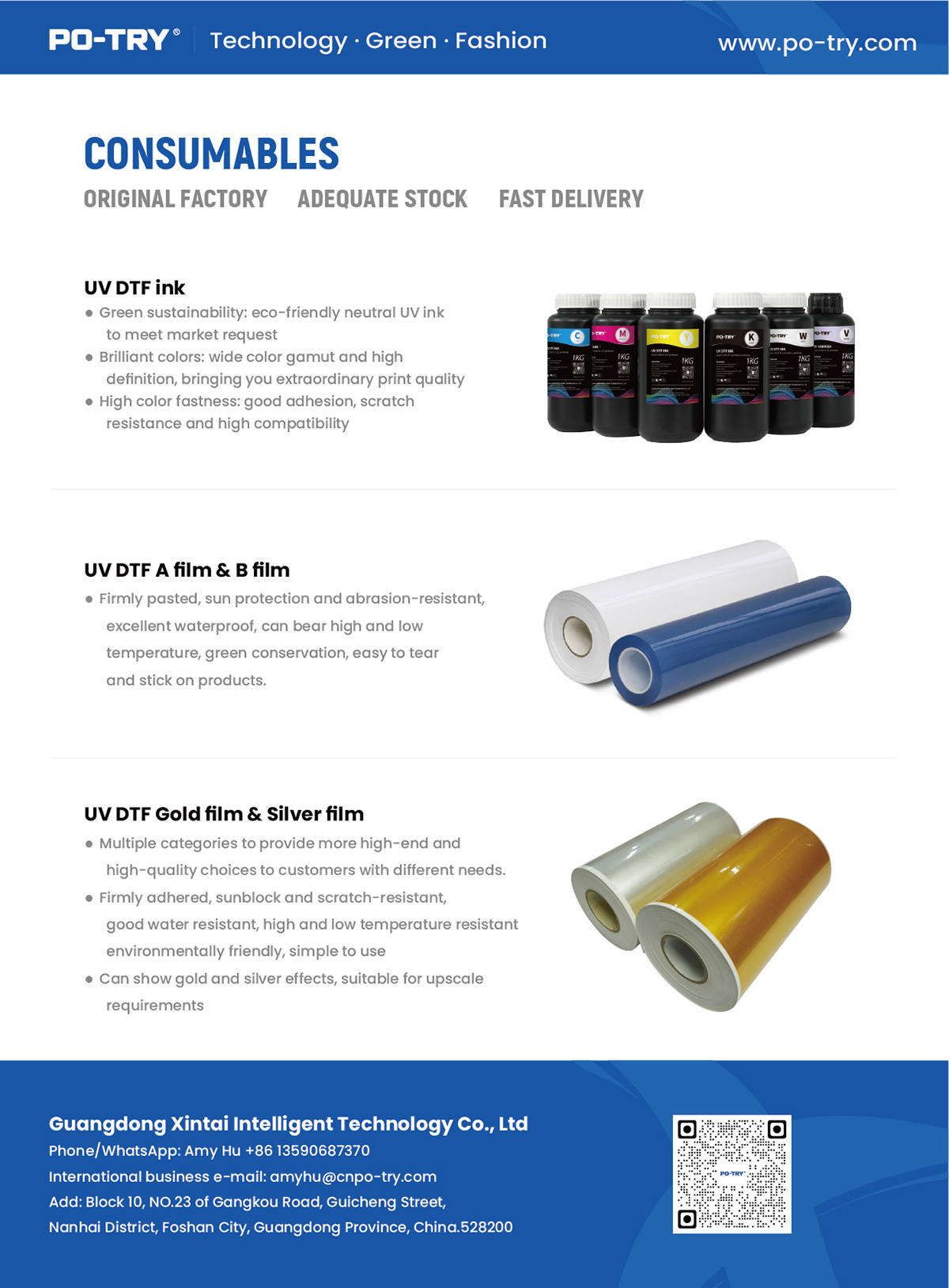

| Material Type | UV DTF A &B film, gold film, silver film |
| Curing System | UV LED lamp |
| UV LED Lamp Cooling System | Water-cooled |
| File Format | TIF(Mode: CMYK) |
| RIP Software | Maintop 6.1(UV version)/ Photoptit(optional) |
| Power Consumption | UV lamp control case: 750W + Heat roller: 700W + Machine: 750W |
| Input Voltage | AC220V士10%,50/60Hz,AC110V(optional) |
| Working Condition | Temperature: 20-28°C,Humidity:45-65% |
| Printer Size | L1910mm*W900mm*H1610mm |
| Packing Size | L2450mm*W1010mm*H860mm |
| Net /Gross Weight | 240KG/313KG |
| PC Requirements | Win7 or above, 64 bit, CPU Processor i5 or above, 8G Storage, C disk with solid state hard drive 120G or above, Attached disk 1TB, Gigabit Ethernet port |
| Stabilizer | 3000W |
| Square number ofpower cords used by the machine | 4m² |
